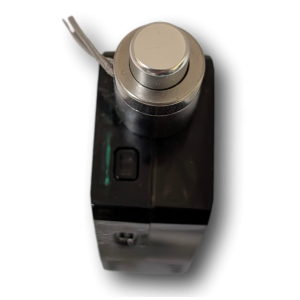

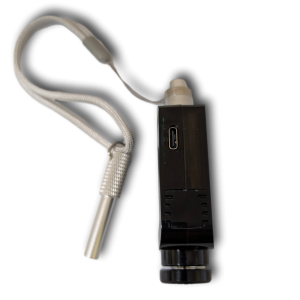

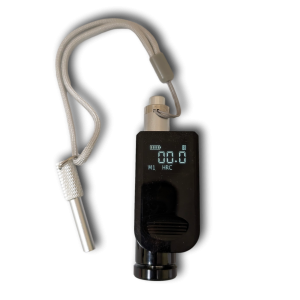

SRP-5 Bluetooth Hardness Tester

Price: $295.00 $239.00

Brand: CIMETRIX
Product Code: SRP-5
Availability: In Stock
Condition: New

Add to Wish List Add to Compare

(0 reviews) | Write a review

Description Reviews (0)

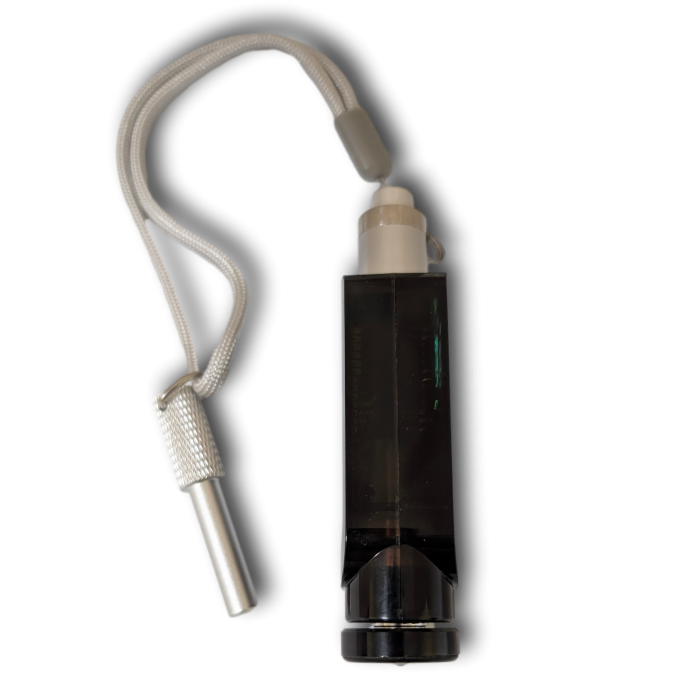

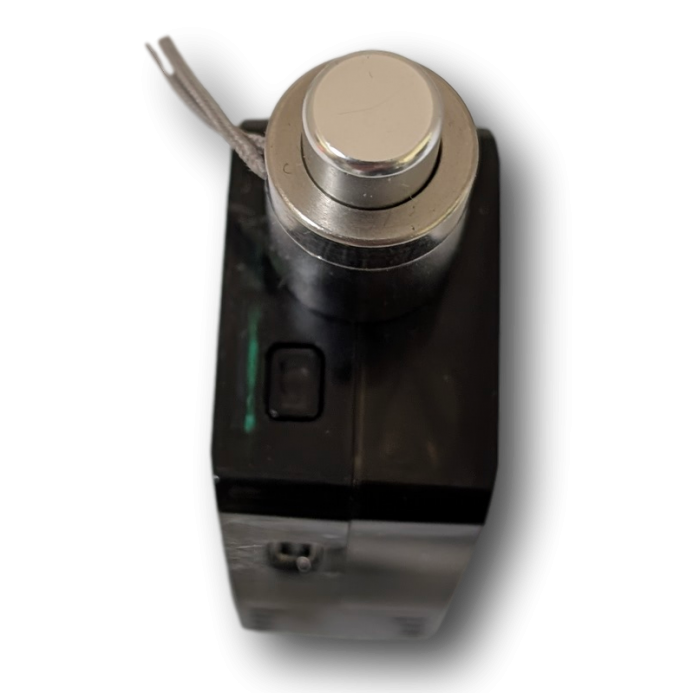

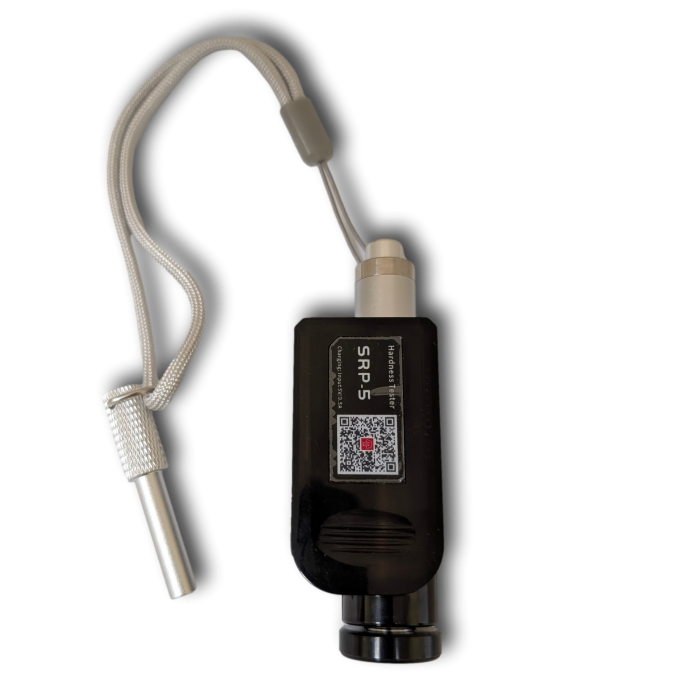

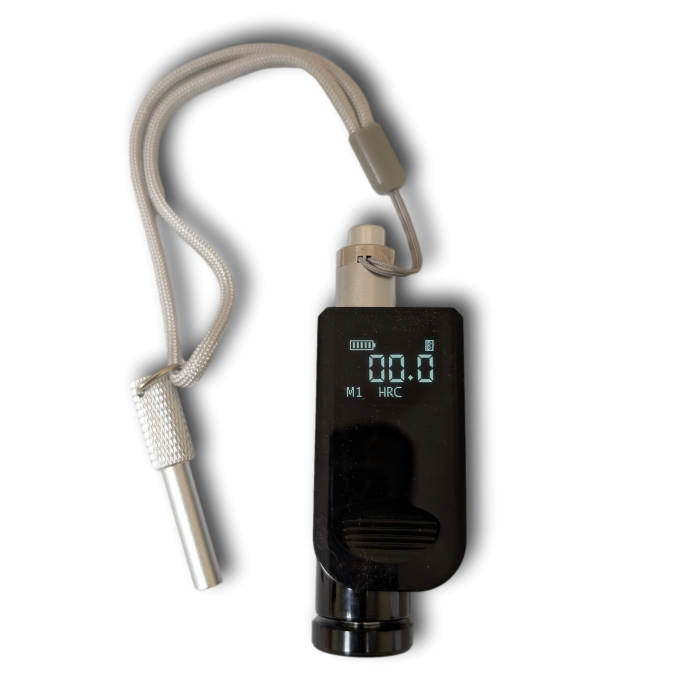

SRP-5 Bluetooth Reading Probe

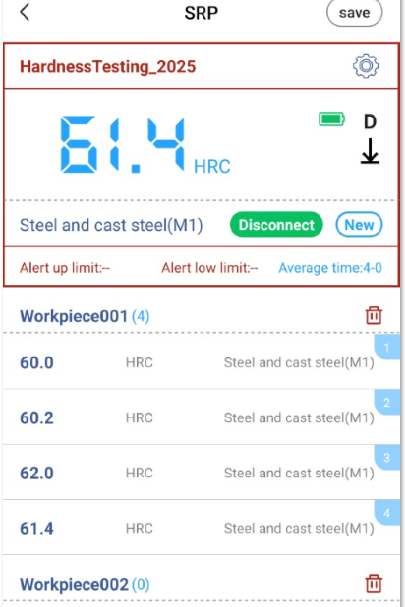

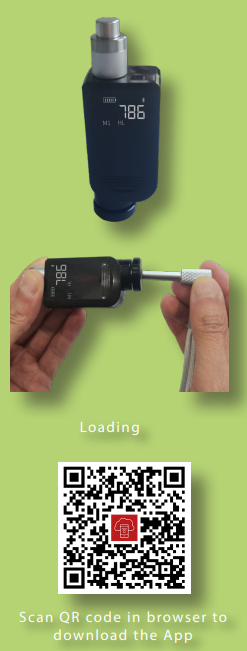

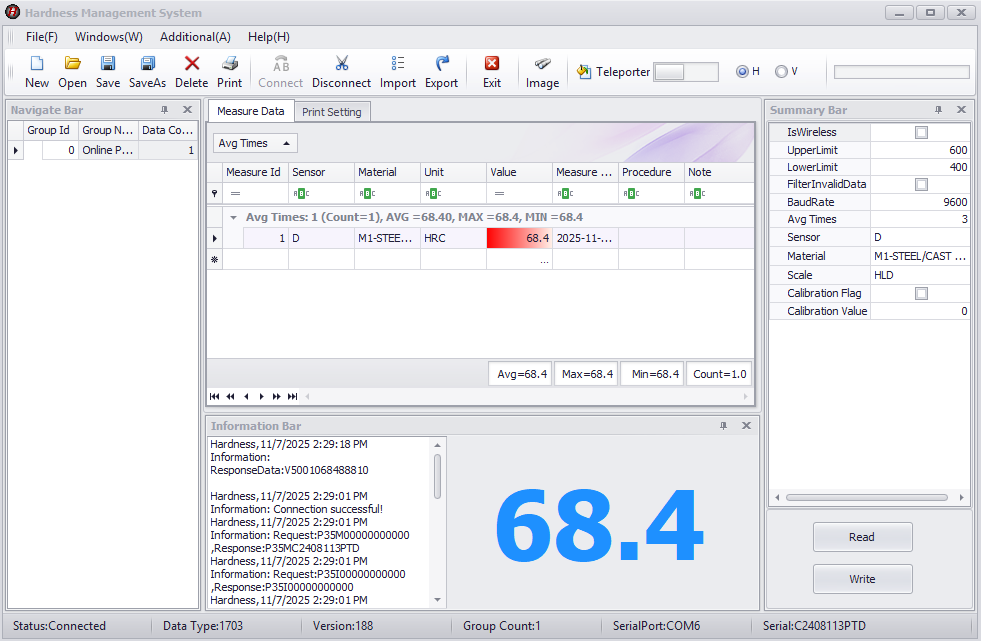

The SRP-5 is a super mini handheld metal hardness tester. The size is much smaller than a typical portable hardness tester, which lets SRP-5 meet not only normal measurements, but can take measurements in narrow/tight spaces as well. The measurements can be read on the probe LCD directly. You can also connect the SRP-5 to the FREE moblie App ( Android only ) or FREE PC software to set up all parameters after connecting to mobile or PC, you can get realtime measuring data, print test report and export/store measuring data to mobile/PC.

Advantages

Super mini design , one-hand operation available 3.5" tall x 1.25" wide x 0.75" deep
High accuracy : +/-2 HL (or 0.3% @HL800)
Universal impact direction mode, it does not need to setup different impact direction
Unlimited memory (Connected to mobile ( App for Android Only ) or PC )

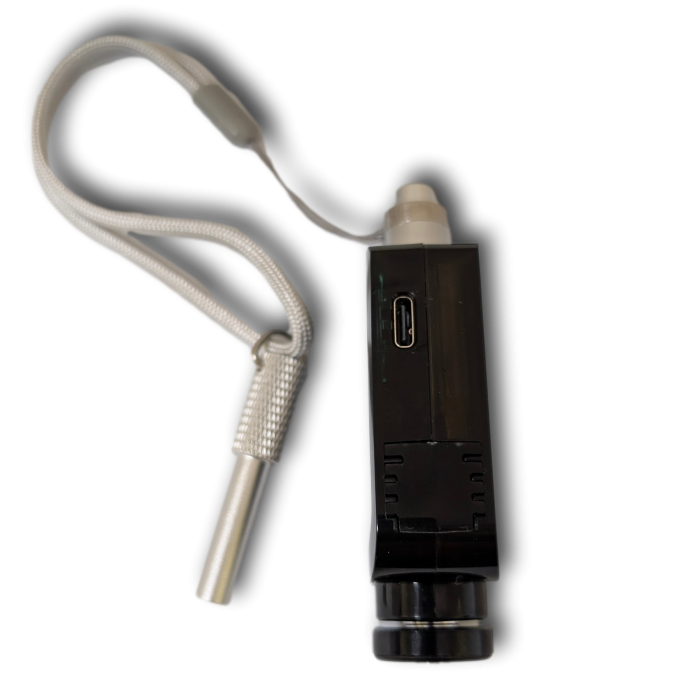

It can connect to mobile or computer by Bluetooth or USB
Readings can be displayed on both the tester and the mobile App ( Android only ) / PC software

Specifications

Model	CIMETRIX SRP- 5
Principle	Leeb hardness measurement
Accuracy / Repeat- ability	±0.3% @ HL=800 / ±2HL
Display	LCD with back light
Hardness scale	HL / HRC / HRB / HB / HV / HS / HRA / MPa
Measuring range	HL170-960 / HRC1-74 / HRB1.2-140 / HB18-1027 / HV42-1220 / HS3.9-112 / HRA7-88.5 / MPa 89-3300
Impact device	D (Integrated)
Materials	10 common metal materials Steel/Cast steel, Alloy tool steel, Stainless steel, Lamellar iron, Nodular iron, Cast aluminum, Brass, Copper aluminium alloy bronze, Pure copper low alloy copper, Forged steel
Memory	Unlimited (save to Mobile or PC)
Statistics function	Average / Max. / Min.
Re-calibration	Allowed by user
Indicator	Low battery
Interface	Bluetooth / USB for transferring data with Mobile / PC
Power supply	3.7V Li-ion rechargeable battery
Working environment	-20ºC~+45ºC
Dimension (mm)	88 x 30 x 20
Net weight (g)	45
Standards	ASTM A956, DIN 50156, EN ISO 16859, GB/T 17394-1998
